Telaio
CROSSWAY TFS III, material: aluminium, 700x50C max. wheelsize, 135x9mm axle standard, BSA bottom bracket standard
Colore
TEAL BLUE

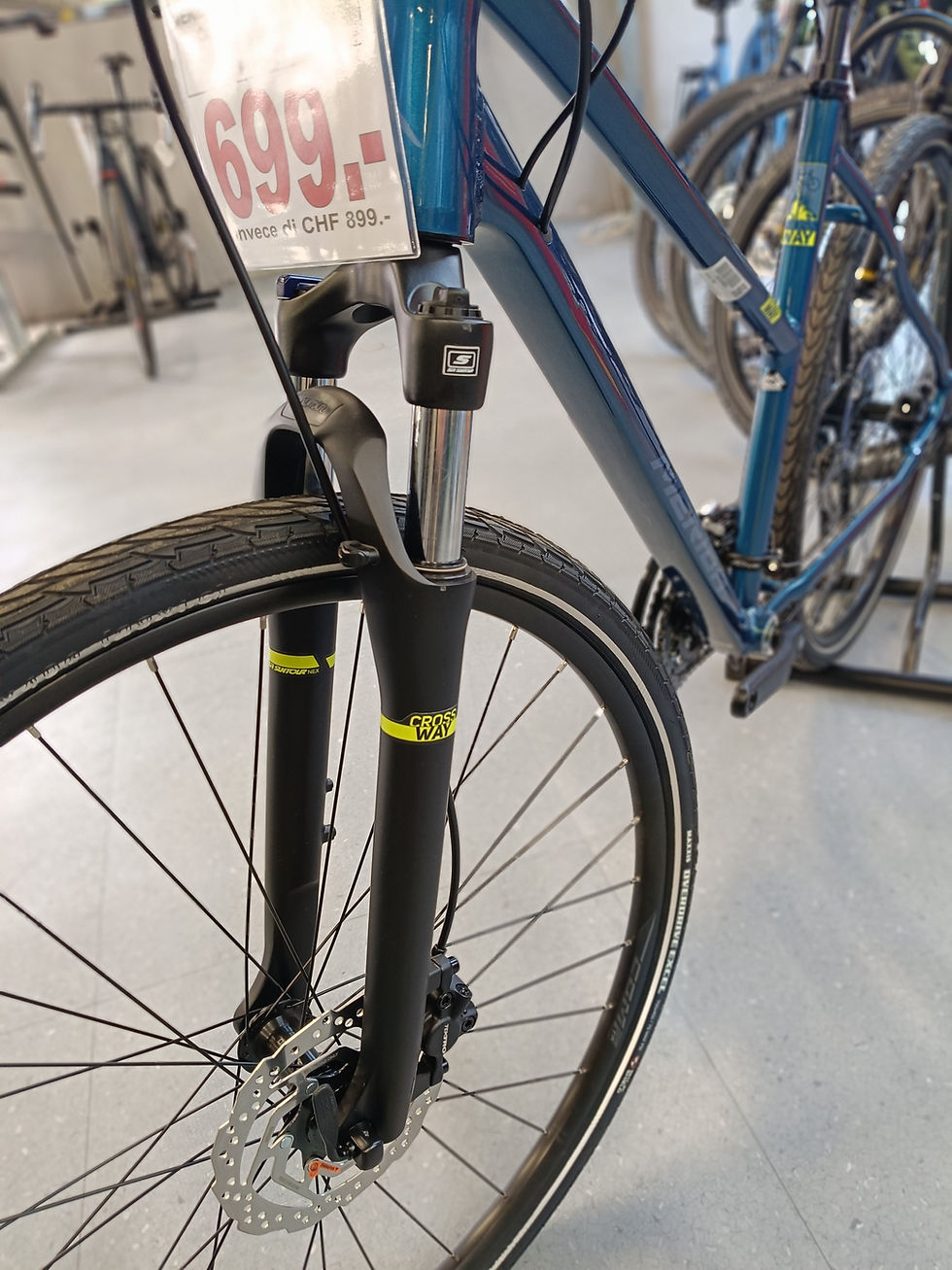

Forcella
Suntour NEX HLO, Coil, 63mm suspension travel, Lockout, 700x48C max. wheelsize
Deragliatore anteriore
Shimano M370
Deragliatore posteriore
Shimano Alivio
Cambio anteriore
Shimano Altus
Cambio posteriore
Shimano Altus
Leva freno
Tektro M275
Freno anteriore
Tektro M275, 2 piston/ 160 mm
Freno posteriore
Tektro M275, 2 piston/ 160 mm
Catena
KMC M99
Pedaliera
SAMOX, AF29-321SSS-P, 170 mm-XXS/XS/S, 175 mm-M/XL
Pacco pignoni
Shimano HG200, 11-34 teeth, 9 speed
Movimento centrale
FSA TH-7420ST Cartridge Bearing
Cannotto reggisella
MERIDA TK, 30.9mm diameter, 10mm setback, 40mm seatpost suspension travel

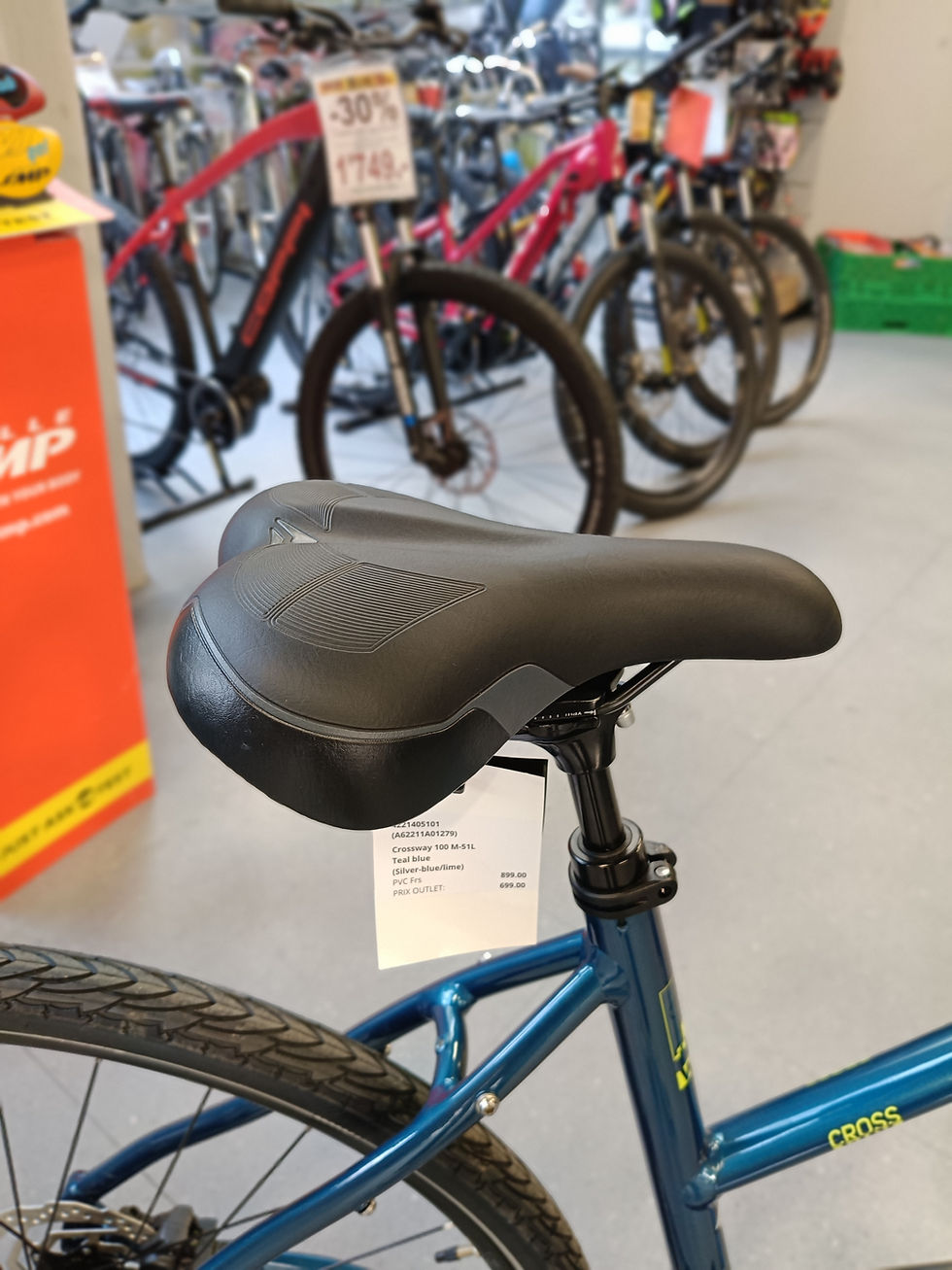

Sella
MERIDA Cross Sport
Mozzo anteriore
Shimano TX505, 100x9mm width front hub, 32 spoke holes, Centerlock
Mozzo posteriore
Shimano TX505, 135x9mm width rear hub, 32 spoke holes, Centerlock
Copertoni
Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild // Maxxis Overdrive Excel, 700x40C, wire, reflective stripe, Silkshild
Cerchi
MERIDA COMP TK, 20mm inner width, 17mm height, material: aluminium
Ruote
700
Manubrio
MERIDA COMP CC, material: aluminium, 660mm width, 25mm rise
Attacco manubrio
MERIDA COMP TK, material: aluminium, 31.8mm diameter, adjustable, 80 mm-XXS/XS/S, 90 mm-M/L, 100 mm-XL
Serie sterzo
MERIDA M2346 Neck
